| Specification |
MD7032G |
MD7045FG |
| Drilling capacity |
32mm |
45mm |
| Max milling capacity (face/end) |
76/20mm |
80/32mm |
| Max distance from spindle nose to table |
450/600mm |
450mm |
| Spindle travel |
130mm |
130mm |
| Spindle taper |
MT3 or R8 |
MT4 |
| Range of spindle speed(6 steps) |
50Hz |
80-1250rpm |
| 60Hz |
95-1500rpm |
95-1500rpm |
| Size of working table |
800x240mm |
| Overall height (without stand) |
1060mm |
| Motor power |
0.75kw |
1.5kw |
| Net/gross weight |
291/336kg |
310/350kg |
| Packing size（mm） |
930x832x1160 |
765x900x1160 | |
| |
 |
| Specification |
MD40HS |
MD40H |
| Max. drilling capacity |
31.5mm(MT3) 40mm(MT4) |
| Diameter of vertical milling |
32mm |
| Spindle speeds range |
50HZ 75-1600rpm, 60HZ 90-1970rpm |
| Worktable travel |
X 370mm Y 90mm |
| Dimension of worktable |
600x190mm |
| Max. distance spindle nose to worktable |
610mm |
| Max. distance spindle nose to base |
1180mm |
| Motor |
1.1kw |
| Package size |
820x720x1830mm | |
| |
 |
| Specification |
MD20 |
MD20E |
| Max. drilling capacity |
20mm |
| Max. drilling capacity (face end) |
63mm 12mm |
| Taper of hole in spindle norse |
MT3 |
| Max. spindle stroke |
90mm |
| Spindle speed rpm |
210,380,710, 200,2000 |
380,520,800, 1200,2000 |
| Max track |
500mm |
370mm |
| Radial rise-fall stroke |
370mm |
350mm |
| Motor |
0.75kw |
| Package size(mm) |
1130x560x1225 |
760x474x112 | |
| |
 |

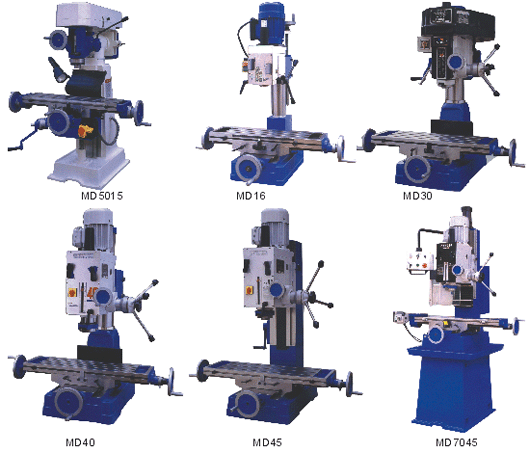

| Specification |
MD5015 |
MD16 |
MD30 |
MD40 |
MD45 |
MD7045 |
| Max drilling capacity Steel/Iron |
|
20mm |
31.5/25mm |
31.5/40mm |
31.5/45mm |
31.5/45mm |
| Max milling capacity Face/end |
|
20mm |
76/20mm |
80/32mm |
80/32mm |
80/32mm |
| Worktable size (mm) |
152x660 |
586x160 |
730x210 |
800x240 |
800x240 |
| Worktable longitudinal travel |
360mm |
350mm |
500mm |
500mm |
565mm |
565mm |
| Worktable cross travel |
150mm |
140mm |
230mm |
230mm |
230(190)mm |
230(190)mm |
| Spindle taper |
MT30 or R8 |
MT2 |
MT3 or R8 |
MT3,MT4or R8 |
MT3,MT4 or R8 |
| Spindle stroke |
70mm |
40mm |
120mm |
| Spindle speed (rpm) |
50Hz:190
-2100
60Hz:230
-2520 |
110-1660 |
50Hz:100-2080
60Hz:140-2436 |
50Hz:75-1600
60Hz:90-1970 |
50Hz:75-1600
60Hz:90-1970 |
50Hz:75-1600
60Hz:150-3200 |
| Max distance spindle to table |
0-320mm |
160mm |
440mm |
470mm |
| Head tilt left right |
90 o |
360 o |
90 o |
| Motor power (kw) |
1.1 |
0.375 |
1.5 |
1.1 |
1.1 |
0.85/1.1 |
| N.W/G.W (kg) |
262/354 |
125/155 |
300/350 |
270/300 |
300/350 |
590/680 |
| Packing size (mm) |
940x760
x1260 |
780x600
x910 |
950x760
x1150 |
820x760
x1150 |
850x760
x1150 |
1240x960
x2240 | |
| |
 |
| Specification |

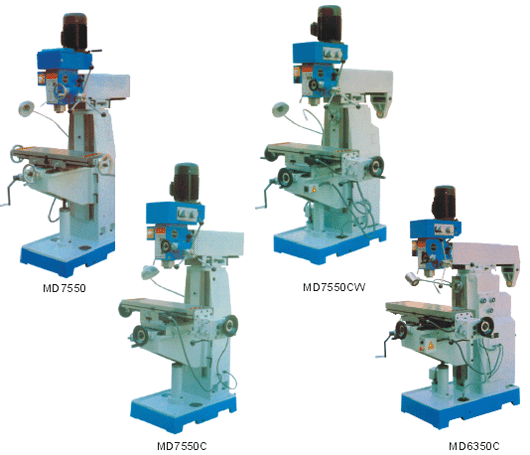

MD5032 |
MD6350C |
MD7550CW |
MD7550C |
MD7550 |
| Max. drilling dia |
32mm |
50mm |
50mm |
50mm |
50mm |
| Max. horizontal milling width |
63mm |
100mm |
100mm |
100mm |
100mm |
| Max. vertical milling dia |
|
25mm |
25mm |
25mm |
25mm |
| Max. tapping dia |
|
M16 |
M16 |
M16 |
M16 |
| Distance spindle to table surface |
550mm |
90-400mm |
70-420mm |
70-420mm |
90-490mm |
| Spindle speed range |
Vertical |
42-2200rpm |
110-1760rpm |
110-1760rpm |
110-1760rpm |
230-1825rpm |
| Cross |
|
38-1310rpm |
58-1355rpm |
|
|
| Spindle travel |
180mm |
120mm |
120mm |
120mm |
120mm |
| Table size(mm) |
700x320 |
1120x280 |
800x240 |
800x240 |
800x240 |
| Table travel(mm) |
400x320 |
600x320 |
400x230 |
400x230 |
400x230 |
| Motor(kw) |
1.5/2.5 |
0.85/1.5/2.2 |
0.85/1.5/1.5 |
0.85/1.5 |
0.85/1.5 |
| Overall dimensions (mm) |
1270x1080
x2350 |
1352x1285
x2130 |
1290x1220
x2100 |
1110x1100
x2080 |
1110x1100
x2080 | |
| |
 |

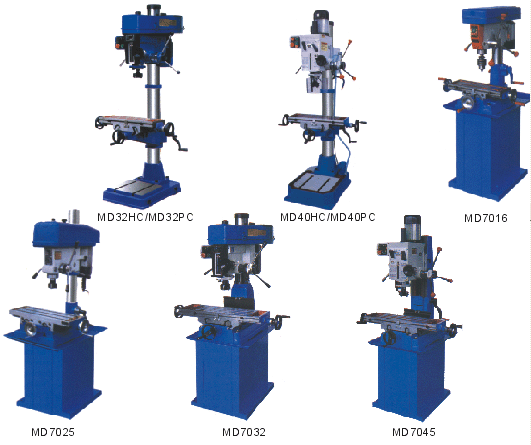

| Specification |
MD-32HC/PC |
MD-40HC/PC |
MD7016 |
MD7025 |
MD7032 |
MD7045 |
| Max. drilling capacity |
31.5mm |
40mmm |
16mm |
25mm |
31.5mm |
45mm |
| Width of face milling |
80mm |
40mm |
63mm |
80mm |
| Diameter of vertical milling |
22mm |
10mm |
13mm |
22mm |
28mm |
| Diameter of column |
115mm |
|
|
|
|
| Spindle travel |
130mm |
120mm |
80mm |
110mm |
130mm |
120mm |
| Distance spindle axis to column generating line |
202mm |
272.5mm |
182mm |
240mm |
202mm |
260mm |
| Max .distance spindle nose to table |
745mm |
360mm |
510mm |
460mm |
475mm |
| Spindle taper |
MT3 |
MT4 |
MT2 |
MT3 |
MT3 |
MT4 |
| Spindle speeds range(rpm) |
100-2150 |
95-1600 |
320-3300 |
290-2150 |
100-2150 |
95-1600 |
| Spindle speeds series |
12 |
6 |
12 |
5 |
12 |
6 |
| Dimension of worktable surface( mm) |
585x190 |
420x152 |
555x195 |
730x210 or820x240 |
| Table travel( mm) |
370x180x515 |
230x150 |
240x140 |
500x175 or550x200 |
| Overall height |
1760/1810mm |
900mm |
1130mm |
1100mm |
1050mm |
| Main motor(w) |
1500 or 1100 |
550 |
750 |
1500 or 1100 |
750 or 1100 |
| G.W(kg) |
305/320 |
350/375 |
100 |
190 |
285 |
318 |
| Packing dimension(cm) |
82x73x186/191 |
65x58x77 |
86x70x105 | ,
97x75x112 | |
| | |
|
| |
|
|
|
