| Specification |

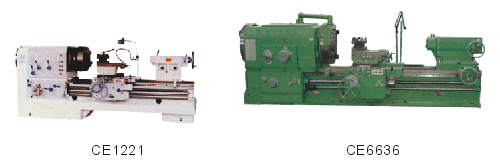

CE1221 |
CE1221K |
CE6636 |
| Max swing over bed |
840mm |
840mm |
1000mm |
| Max outer diameter of pipe |
210mm |
210mm |
|
| Max swing over carriage |
560mm |
560mm |
640mm |
| Max. length of work piece(mm) |
1500/3000/4000
/5000/6000 |
750/1500 |
1500/2000/
3000/4000/5000 |
| Mar turning length(mm) |
1350/2850/3850
/4850/5850 |
600/1350 |
|
| Diameter of spindle through hole |
210mm |
210mm |
360mm |
| Range of spindle speed |
12 steps
(45-572r/min) |
|
6.3to 315 r..p.m.
with 18 steps |
| Kind of metric thread and pitch range |
22 kinds
1 to 15mm |
0.1-500mm |
56 kinds
1 to 120mm |
| Kind of inch thread and range |
28 kinds
15 to 1 T.P.I |
37 kinds
30-1.125 teeth/in |
| Kind of modular thread and range |
21 kinds
0.5 to 7.5 π m |
46 kinds 0.5 to 60mm |
| Kind of radial thread and range |
20 kinds 28 to 2 D.P |
46kinds 0.5 to 60 D.P |
| Max travel of tool post |
240mm |
|
300mm |
| Max travel of cross slide |
500mm |
|
520mm |
| Diameter of tailstock sleeve |
100mm |
|
160mm |
| Travel of tailstock sleeve |
300mm |
300mm |
300mm |
| Main motor power |
9/11kw |
11kw |
22 kw |
| Net weight(kg) |
4300/5000/5800
/6500/7200 |
4300/4700 |
9350/9850/10850/
11750/12650 |
| Overall size |
3515/5015/6160
/7160/8160x
1395x1650mm |
2950/3650x
1395x1700mm |
4600/5100/6100
/7100/ 8100/9100x
1980x1790mm |
