| Specification |
CE61100E |
CE61125E |
CE61140 |

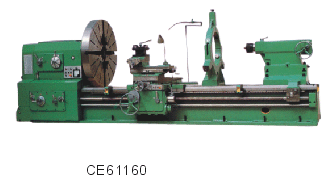

CE61160 |
CE61180 |
| Max swing over bed |
1000m |
1250mm |
1400mm |
1600mm |
1800mm |
| Max swing over carriage |
650mm |
900mm |
1100mm |
1280mm |
1480mm |
| Max capacity of the worktable |
6t , optional :8t,10t |
| Width of bed |
755mm |
970mm |
| Max length of work piece |
1500-18000mm |
1500,3000,6000,9000mm |
| Max. supporting capacity of centers |
6000kg |
| Metric threads 45kinds |
1-120mm |
| Whitworth threads 42kinds |
30-1/4t.p.i. |
| Module threads 46kinds |
0.5-60mm |
| Diametric threads 48kinds |
60-0.5D.P |
| Spindle bore |
130/104mm |
| Spindle speed |
Normal
21steps |
3.15-315r/min |
2.5-250r/min |
2-200r/min |
| Reverse 12steps |
4-315r/min |
3.15-250r/min |
2.5-200r/min |
| Max travel of upper slide |
200mm |
| Max. travel of middle slide |
400mm | |
| |
|
| |
|
|
