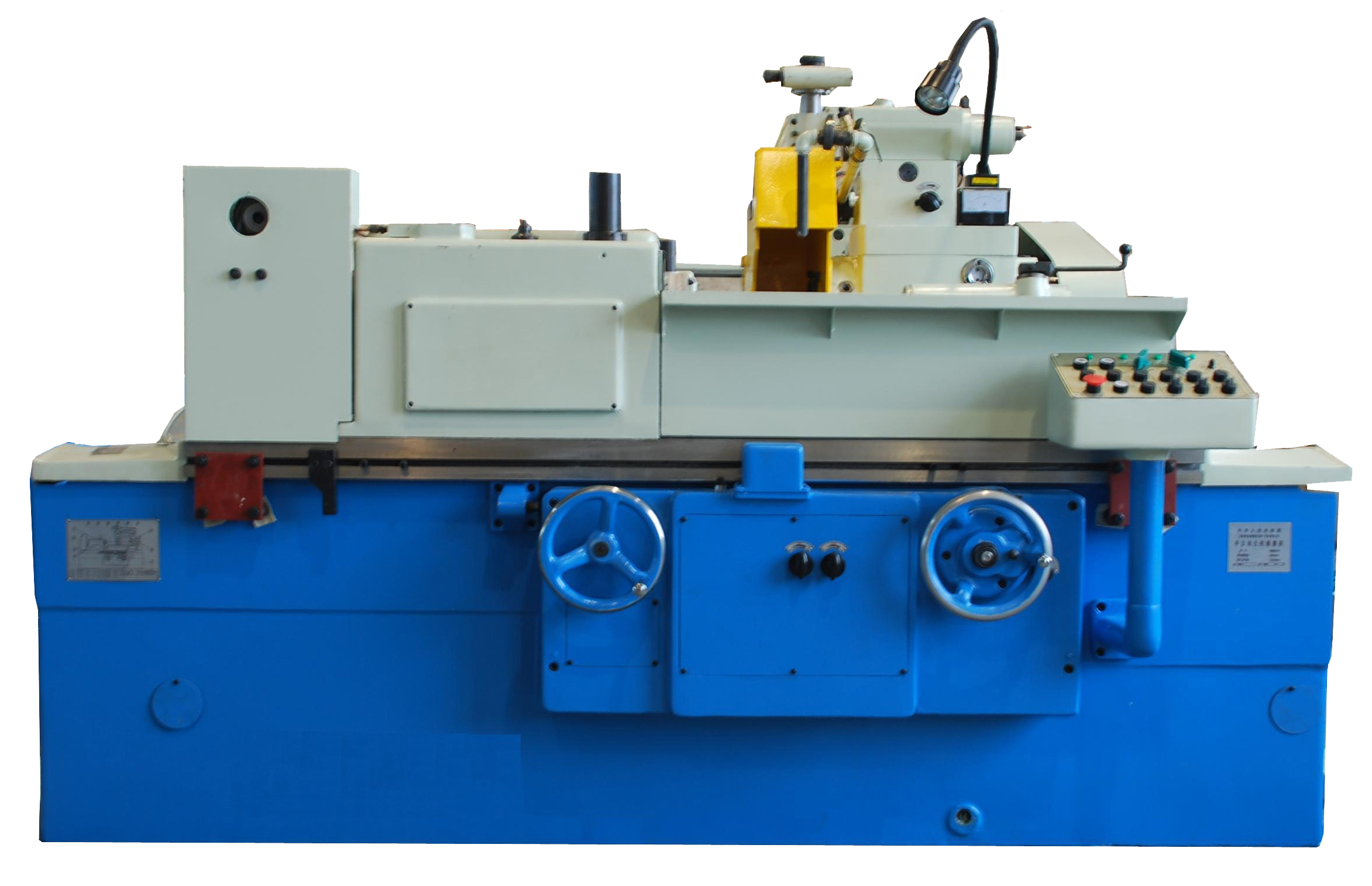

Camshaft Grinding Machine MB8313
Technical Parometers
|
Item |
Unit |
MB8318 |
|
Max. swing diameter x Max. length between centers |
mm |
180x1250 |
180x500 |
|
Range of capacity |
Max. gringding extral diameter |
mm |
20-180 |
20-180 |
|
Max. length of workpiece |
mm |
1250 |
500 |
|
Max. weight of workpiece |
kg |
60 |
60 |
|
Max. work lift |
mm |
20 |
20 |
|
Center height |
mm |
100 |
100 |
|
Distance between centers |
mm |
1250 |
500 |
| Working accuracy |
Parallelism of can generating line with rotary axis |
mm |
0.005 |
0.005 |
| Cam surface roughness |
um |
Ra0.63 |
Ra0.63 |
| Motor |
Total power |
kw |
11.325 |
11.325 |
| Power of grinding head |
kw |
7.5 |
7.5 |
| Grinding wheel size |
mm |
600x32x305 |
600x32x305 |
| Machine weight |
kg |
5000 |
4500 |
| Overal size(LxWxH) |
mm |
3800x1670x1700 |
2700x1670x1700 |

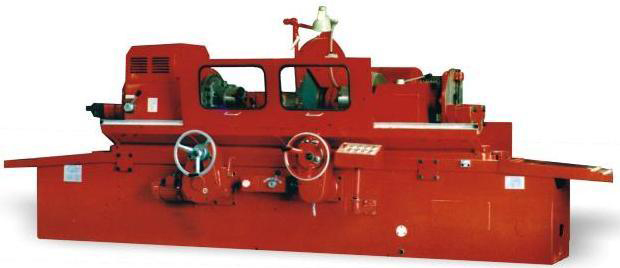

Camshaft Grinding Machine M8312A
Technical Parometers
|
Item |
Unit |
M8312A |
|
Max. swing diameter x Max. length between centers |
mm |
120x1250 |
|
Max. workpiece lenght |
mm |
1250 |
|
Max. workpiece lift |
mm |
15 |
|
Max. workpiece weight |
kg |
70 |
|
Center height |
mm |
82 |
|
Working spindle rotation |
r/min |
5,10,20,30,40,60 |
|
Wheelstock travel |
mm |
185 |
|
Rapid approach & withdrawal of wheelstock |
mm |
100 |
|
Wheel head travel per turn of handwheel |
mm |
1 |
|
Resolution of wheel head per turn of handwheel |
kw |
0.05 |
|
Max. worktable longitudinal travel |
mm |
1350 |
|
Worktable travel per turn of handwheel |
mm |
Coarse 5.88, Fine 1.68 |
|
Cam surface roughness |
um |
Ra0.4 |
|
Parallesism of cam generating line with rotary axis |
mm |
0.005 |
|
Grinding wheel size |
mm |
∮750x∮305x20.32 |
|
Total power |
kw |
9.74 |
|
Machine weight |
kg |
6000 |
|
Overal size(LxWxH) |
mm |
4166x2037x1636 |
|
| |
|
|
